How a Liquid-Cooled Server Is Made: The Production Process

This article walks you through the production process of a liquid-cooled US server, step by step from design to finished unit. Liquid cooling for data centers has become essential. Traditional air-based systems top out at 35-41 kW per rack. Modern high-density AI systems pull approximately 120 kW, and the newest reach up to 246 kW. A unit with advanced thermal management handles these loads. Industry experts report that about 22% of data centers now use liquid cooling, a share expected to approach 50% within five years. You will follow the manufacturing line in order: design, component making, assembly, testing, and packaging. This inside look shows you how each stage builds reliability into the final unit.

Key Takeaways

• Liquid cooling handles high power densities that air cooling cannot.
• Direct-to-chip and immersion cooling are two main methods with different tradeoffs.
• Precision manufacturing and rigorous testing ensure reliable performance.
• Helium leak detection finds tiny leaks that other methods miss.
• Proper packaging protects the server during shipping.

Designing the Server and Its Liquid Cooling

Liquid cooling works by circulating coolant through CPUs, GPUs, and memory modules to absorb heat, then transferring it to a radiator or heat exchanger. Two main approaches dominate the design phase. Direct-to-chip liquid cooling mounts a cold plate directly on each component. Immersion liquid cooling submerges entire servers vertically in dielectric fluid. Each method carries distinct tradeoffs.

Direct-to-chip designs use four interconnected layers to support racks above 200 kW. The facility-level coolant distribution loop feeds the coolant distribution unit. That unit routes fluid to rack-level branches. Server-level cold plates and internal tubing complete the path. This architecture handles extreme power densities that air cooling cannot.

Choosing Cold Plates for Chips and Memory

Material selection drives cold plate performance. Copper offers thermal conductivity around 400 W/mK. Aluminum alloys reach roughly 200–250 W/mK. For direct contact applications, you need a surface finish below Ra 0.8 µm. Critical thermal pathways demand dimensional tolerances of ±0.05 mm and flatness deviations under 0.025 mm across the contact surface.

Manufacturing method matters just as much. Precision CNC machining achieves flatness tolerances of 0.01 mm or better. Vacuum brazing joins layers in a controlled atmosphere to prevent oxidation. Friction stir welding creates a solid-state weld with excellent strength. Diffusion bonding joins materials at the molecular level under high pressure and temperature without melting. Conventional machining and welding can reduce effective thermal conductivity by 15–30% due to microscopic air gaps.

Selecting Pumps, Tubing, and Coolant

Pumps must handle continuous duty. They circulate coolant through the loop without interruption. Tubing connects every cold plate to the manifold and must resist corrosion and pressure changes.

Coolant choice affects the entire cooling system. Purified or deionized water has a high specific heat of about 4.18 kJ/kgK. However, pure water is aggressive and can strip ions from metals. You need corrosion inhibitors such as azoles, silicates, phosphates, or organic compounds. These additives reduce oxidation and galvanic corrosion, especially in systems with multiple metal types. Ethylene glycol and water mixtures provide some corrosion protection but form acidic compounds in aluminum. Propylene glycol and water is less toxic but carries a risk of biological growth. Mineral oil is non-corrosive but requires compatibility checks. Dielectric fluids offer excellent electrical insulation. Filtration, ion exchange, and activated carbon keep coolants clean and maintain heat transfer efficiency.

Making Liquid Cooling Server Components

Building Cold Plates and Manifolds

You start cold plate fabrication with a solid block of copper or aluminum alloy. CNC machining cuts the internal flow channels, and the channel width, depth, and corner radius directly affect pressure drop and heat transfer. After machining, the shop joins the layers through vacuum brazing, friction stir welding, or diffusion bonding. Each method must prevent microscopic air gaps that reduce thermal conductivity.

Quality control gates catch defects at every stage. Before joining, inspectors check channel dimensions, O-ring grooves, and internal cleanliness. After joining, they verify thermal-interface flatness, port threads, and sealing faces. A flatness target of 0.02 mm or better across the mounting surface ensures consistent contact with the chip. Pressure testing typically runs at 1.5 times working pressure, and helium leak detection reaches sensitivity below 10⁻⁶ mbar·l/s for high-value electronics.

Manifold production follows a similar path. The manifold must deliver uniform flow to every cold plate in the server. A common guideline is roughly 1.5 liters per minute per kilowatt, with high-powered GPUs often needing 1–3 LPM. Poor internal flow paths starve some branches and overload others, which degrades cooling and strains the pump.

Assembling Pumps and Radiators

Pumps circulate coolant through the entire loop and must run continuously without failure. You select a pump rated for continuous duty and match its flow rate to the total pressure drop across all cold plates, fittings, and tubing. Every quick disconnect and manifold adds resistance, so minimizing unnecessary pressure drop reduces pumping power.

Radiator assembly follows. Technicians stack fins, braze the tubes, and pressure-test the core before it joins the loop. For immersion liquid cooling systems, the radiator may be replaced by a heat exchanger that transfers heat to facility water. Both paths require the same discipline: clean surfaces, verified seals, and documented test results.

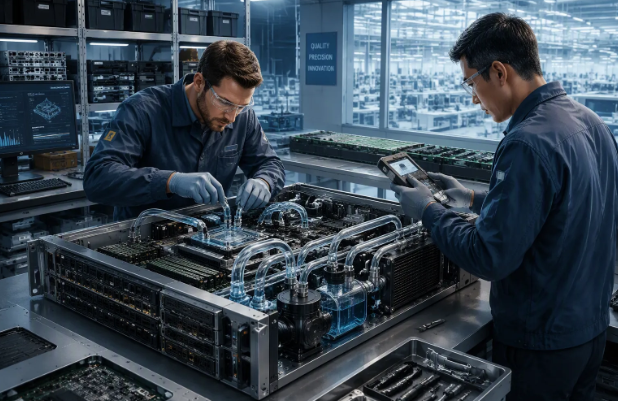

Assembling the Server and Cooling Loop

Assembly begins once every component passes inspection. You mount the motherboard, processors, and memory into the chassis first. Then you position each cold plate directly against its heat-generating component. This step demands precision because misalignment creates air gaps that raise thermal resistance.

Mounting Boards, Cold Plates, and Fittings

You follow a strict sequence when you attach a cold plate to a processor. Each step protects the thermal path between the chip and the metal.

1. Mount the cold plate evenly using the specified torque and tightening sequence.
2. Verify that the cold plate is centered and flush with the processor before final tightening.
3. Inspect the surfaces for damage before and after mounting.
4. Follow the manufacturer’s installation guidelines precisely to avoid misalignment and poor thermal contact.

Thermal interface material minimizes contact resistance between the cold plate and the processor. Mechanical fastening systems ensure proper pressure distribution for stable mounting. You must optimize cold plate surface characteristics, thermal interface material properties, and mounting pressures together. Testing protocols may not fully replicate real-world thermal cycling, so performance degradation can appear only after extended operation.

Fittings complete the loop. You choose from several leak-safe options for liquid cooling piping and valve assemblies. Quick disconnects are two-piece couplings that connect or disconnect without draining the loop. Valved designs automatically close the fluid path during disconnection, which reduces coolant loss and air entry. Double-shutoff configurations close both sides of the connection. Sanitary tri-clamp fittings use precision-machined ferrule faces and gaskets. Orbital welding creates full-penetration welds with no internal gaps for permanent joints. Swivel and quick disconnects provide flexibility at interfaces and dripless disconnects for hot-swappable operation. O-ring seals need protection from particles, so filters in the cooling distribution unit remove debris that could damage seal integrity.

Integrating the Cooling Distribution Unit

The cooling distribution unit routes coolant between the rack and each server. It circulates fluid in a closed loop to remove heat from CPUs, GPUs, and AI accelerators. A rack cooling manifold safely directs liquid throughout the rack. The unit maintains the secondary loop supply temperature above the facility dew point to prevent condensation on cold plates. Filtration keeps coolants clean and protects cold plate integrity. Automatic leak detection and redundant pump design protect uptime.

The cooling distribution unit acts as the middle-man between the cooling infrastructure and the IT equipment. A secondary loop runs between the cold plates and the chiller. The facility side is the Facility Water System. This two-loop arrangement achieves high-quality water while keeping water usage effectiveness low. The unit controls pressure, flow, and temperature to manage rapidly changing AI workloads. In a row unit, the primary facility water system feeds the unit, integrated pumps drive the secondary loop, and a heat exchanger transfers excess heat from the secondary coolant to the primary.

Rack-mounted units install directly in a server rack. A 4U form factor provides localized cooling for individual racks or small clusters. The heat exchanger isolates facility water from the server coolant, which enables independent temperature regulation and prevents contamination. Integrated pumps circulate coolant through the secondary loop to direct-to-chip cold plates. Motorized control valves modulate flow in real time based on thermal load demands. Sensors continuously monitor inlet and outlet temperatures, fluid pressure, and flow rates on both the primary and secondary cooling loops. A programmable logic controller processes sensor data, adjusts pump speeds, actuates valves, and triggers alarms if thresholds are exceeded.

After you fill the loop, you seal every connection and verify that no air remains trapped inside. This step completes the assembly stage of the production process.

Testing Every Server Before It Ships

Every unit must pass rigorous testing before it leaves the factory. This stage of the production process catches defects that could cause failures in the field. You cannot skip these checks. A leak in a data center can destroy expensive hardware and halt operations.

Pressure and Leak Checks

Pressure testing verifies that every joint, port, and channel wall holds up under stress. You pressurize the assembly beyond its normal operating pressure to confirm structural integrity. Testing typically runs at approximately 1.5 to 3 times the rated working pressure, depending on the design and qualification requirements.

Industry standards guide these procedures. The European Standard EN 1779 specifies a pressure decay test where you measure the drop in total pressure, with a recommended drop of no more than 0.5%. An immersion bubble test pressurizes the cold plate and submerges it in fluid to observe bubbles. UL Solutions Standard IEC FDIS 62368-1 requires you to pressurize to maximum working pressure for 5 minutes and check for leaks, then pressurize to 3 times maximum working pressure for 2 minutes and check again. The test medium can be gas or coolant.

Helium leak detection has become the gold standard for water cooling and liquid cold plate manufacturing. Unlike pressure decay or bubble testing, helium leak testing detects leaks as small as 1×10⁻¹² Pa·m³/s. This sensitivity ensures every cooling component meets the strictest quality standards before it leaves the factory. Traditional bubble testing only detects gross or visible leaks. It cannot reliably find micro-leaks on the 10⁻⁹ to 10⁻¹² scale. Helium mass spectrometry uses vacuum accumulation and background suppression for automated, fast production quality control. This method provides orders of magnitude more margin than manual soap solution application.

Thermal and Performance Validation

Thermal validation confirms that your cooling system performs under real workloads. Theoretical models, including computational fluid dynamics, often oversimplify dynamic interactions between cooling systems, IT loads, and environmental variables. This creates gaps between predicted and actual performance.

Computational fluid dynamics plays a significant role in predicting electronics operational temperature. Engineers use it during early design phases to select a cooling strategy and refine thermal design through parametric analysis. A typical workflow follows geometry, mesh, physics setup, solver, and results. In battery thermal management systems, CFD helps identify hot spots, non-uniform coolant distribution, excessive pressure losses, and opportunities for thermal optimization. A well-designed simulation reduces prototype iterations, testing time, and development cost.

However, without validation, a CFD result is only a numerical prediction, not proof of real-world performance. Validation ensures the simulation accurately represents physical reality by comparing results with experimental data, analytical solutions, benchmark cases, and trusted numerical studies. If a CFD simulation predicts a pressure drop of 12.5 kPa while experimental testing measures 12.2 kPa, an error of only 2.5% indicates the model closely represents real-world behavior.

Real-world thermal validation deviates from theoretical simulations due to actual airflow patterns, hot spot formation, and cascading effects of component failures. You must filter out workload windows that would not lead to accurate model identification. Metrics to confirm cooling performance include Power Usage Effectiveness ratios, especially during degraded modes. Regulations require PUE increases of no more than 15% during single-point failures. Dynamic thermal response characteristics show how quickly temperatures rise after a failure and how effectively backup systems engage. Recovery time objectives and energy consumption profiles across the complete fault response lifecycle complete the picture.

Final Assembly and Packaging

Closing the Chassis and Final Inspections

After you complete all tests, you close the chassis. This step secures every component inside the frame. You install the top cover and tighten all fasteners to the specified torque. Each screw must meet its target to maintain electromagnetic shielding and cooling performance.

You then perform a final visual inspection. Check every cable connection and tubing joint. Verify that no foreign objects remain inside the chassis. Confirm that all labels match the unit’s documentation. A final electrical check ensures the server powers on and communicates with the management interface.

The inspection covers the cooling loop as well. Verify that all quick disconnects are fully engaged. Check that no coolant residue appears on any surface. Inspect each cold plate mounting for proper alignment. The cold plate must remain centered on every processor. Document each step in the quality record.

These final checks catch the last defects. A loose fitting could cause a failure in the data center. The production process ends with a unit that meets every specification and maintains effective cooling.

Protective Packing for Shipping

You then pack the server for transport. Start with an anti-static bag that prevents electrostatic discharge damage. Place it in a custom foam cradle that matches the chassis shape. The foam absorbs shocks and vibrations during transit.

Secure the unit inside a corrugated box with adequate wall strength. Add desiccant packs to control humidity. Seal the box with tape that meets ISTA transit standards. Attach handling labels indicating the orientation and fragility.

The packing protects against multiple hazards. Drops, vibrations, and temperature swings stress the equipment. The foam and box absorb impact energy without damaging the components.

Your shipping documentation includes test results, installation guide, and warranty information. This complete package delivers a reliable liquid cooling system for high-density computing. Modern liquid cooling systems support racks far beyond what conventional air systems can handle.

You watched the full production path, from design choices to a packed unit. Precision manufacturing and rigorous testing create a reliable liquid-cooled server. Laser welding delivers leak-free joints. 3D scanning verifies dimensional fit. These steps keep the cooling system performing well under high-density loads. A liquid-cooled data center depends on this discipline for peak uptime. That cooling reliability enables denser server racks. The same cooling loop also extends component life by reducing thermal stress. As liquid cooling evolves, AI now optimizes pump speeds and manifold routing in real time. These liquid cooling systems support higher energy efficiency levels. The technology continues to advance for greater overall efficiency and sustainability.

FAQ

Why does a data center need liquid cooling instead of air?

Air-based systems top out at 35-41 kW per rack. Modern AI racks pull roughly 120 kW, and the newest reach 246 kW. Air simply cannot move that much heat. Liquid cooling handles these extreme power densities, which is why about 22% of data centers now use it.

What is the difference between direct-to-chip and immersion cooling?

Direct-to-chip mounts a cold plate on each component. Cold plates transfer about 70% of heat to liquid, and fans handle the rest. Immersion submerges entire servers in dielectric fluid, which absorbs 100% of heat from all components. Each method carries distinct tradeoffs for servicing and hardware flexibility.

How do you check a server for leaks before shipping?

You pressurize the assembly beyond normal operating pressure. Standards like EN 1779 and IEC FDIS 62368-1 guide the procedure. Helium leak detection finds leaks as small as 1×10⁻¹² Pa·m³/s. This sensitivity catches micro-leaks that bubble testing misses entirely.

What does thermal validation actually prove?

Thermal validation confirms your cooling system performs under real workloads. Computational fluid dynamics predicts performance during design, but simulation alone is only a numerical prediction. You compare simulation results with experimental data. A small error margin, such as 2.5%, shows the model represents real-world behavior.

What keeps coolant clean inside the loop?

Filtration, ion exchange, and activated carbon keep coolants clean. Corrosion inhibitors such as azoles, silicates, phosphates, or organic compounds reduce oxidation and galvanic corrosion. The cooling distribution unit removes debris that could damage seal integrity. Clean coolant maintains heat transfer efficiency across the entire loop.
